Combobulate Now Supports OCaml

Code navigation is one of those aspects of programming that can either make your experience significantly better, or be such a pain. Most of the time we navigate code as text, i.e, searching with regexp, jumping by lines or moving word by word. But code isn't text. It has syntactic structure, and being aware of that structure when moving and editing opens up a different way of working. This is what structural navigation and editing means: operating on the actual constructs of a program; expressions, bindings, match arms, module definitions, etc, instead of characters and lines.

We have recently improved navigation in OCaml with Combobulate support, and this post will get you up-to-speed on what’s new, how it works, and where to try it out!

What Has Structural Navigation in OCaml Looked Like Until Now?

OCaml already has a substrate of structural navigation through Merlin (and by extension OCaml-LSP). The jump command gives you a limited form of structural movement such as jumping to the next let, match, module, and a few other constructs. It is useful, but it's a small subset of what structural navigation could be. Previously, this limitation motivated the GopCaml project, which took a more ambitious approach to structural editing for OCaml by working directly with the compiler's AST.

More recently, tree-sitter has introduced a generic abstraction over syntax. Given a tree-sitter grammar for a language, you get an incremental parser that produces a concrete syntax tree you can query and traverse. OCaml has a tree-sitter grammar which is already used in, for example, neocaml-mode where it provides syntax highlighting.

Combobulate by Mickey Petersen takes tree-sitter in a different direction: it uses the syntax tree for structural navigation and editing. It's a minor mode for Emacs that supports many languages, and it now supports OCaml.

Why Does Combobulate Matter for OCaml?

OCaml code nests very deeply. Modules contain structures, structures contain let bindings, let bindings contain match expressions, and match cases can contain further match expressions. Type declarations can define records, variants, and GADTs in a single type ... and ... block. Many of these constructs can recurse into each other with no fixed limit; this is part of what makes OCaml expressive, but it also means that even a small OCaml file produces a deep and wide tree-sitter parse tree.

Implementing structural navigation for OCaml is harder than for most languages precisely because of this: the procedures that tell Combobulate how to pick the right node at any point have to account for potentially infinite nesting at every level. This is also why line-based movement becomes incredibly slow and unreliable. Jumping to the next let with an incremental search won’t help when there are six of them nested within each other. This is why structural navigation, which helps us move by the structure of the code, and the relationships between different nodes in the tree, feels natural and makes a real difference.

Combobulate is an important addition to the OCaml ecosystem because it perfectly complements tools like Merlin and OCaml-LSP. While Merlin is great for semantic intelligence, type checking, autocomplete, and jumping to definitions, its structural navigation features (like the jump command) are limited. By letting Combobulate handle the purely syntactic, structural movement and editing, the two tools work together to provide a comprehensive editing experience: Merlin understands what your code means, while Combobulate understands its shape.

Navigating OCaml with Combobulate

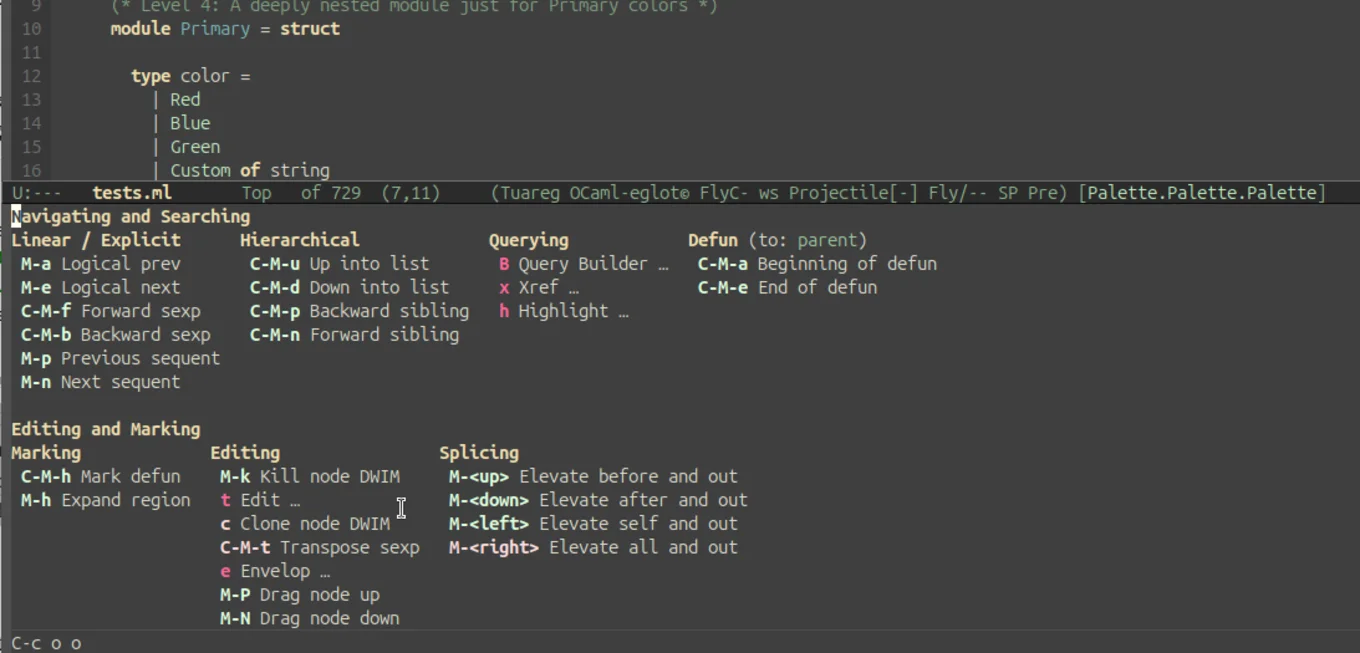

Once Combobulate is active in your OCaml buffer, you should see a © in the mode line. There is a Magit-style transient UI bound to C-c o o that lists every binding, which is handy while you're learning. To inspect the full keymap directly, run M-x describe-keymap RET combobulate-key-map.

With Combobulate, you have different commands to navigate your code in a variety of ways: jumping between siblings, jumping between occurrences of words, traversing the node tree sequentially, and more.

Navigation Commands

Navigation Examples

A) Simple Examples

• Navigating down into a body (C-M-d)

  "Down" means entering whatever node the cursor is sitting on. The clearest case is descending from a module declaration into its contents:

  module Counter = struct
    let value = 0
    let bump x = x + 1
  end


  Place the cursor on module. Press C-M-d thrice and the cursor moves to let value = 0. Press C-M-d again and you descend further, into the binding itself.

• Navigating up to the parent (C-M-u)

  "Up" is the inverse: leave the current node and land on its enclosing parent. Suppose the cursor is on the number 100 inside a record:

  let player = { name = "Ada"; score = 100 }


  C-M-u jumps to the whole field score = 100. Press it again to land on the record { ... }. To move from 100 directly to the let keyword, use C-M-a.

• Navigating siblings (C-M-n / C-M-p)

  Siblings are nodes at the same level, like match cases, tuple components, record fields, and array elements. Take a match expression:

  match shape with
  | Circle r    -> pi *. r *. r
  | Square s    -> s *. s
  | Triangle (b, h) -> 0.5 *. b *. h


  Place the cursor on the first match arm (Circle r -> ...). C-M-n moves to Square s -> .... Again to Triangle .... C-M-p walks back.

B) Complex Examples

Using only parent-child or sibling navigation is not always sufficient to navigate OCaml code efficiently. Because OCaml's deep nesting can lead to highly nested concrete syntax trees, you need a few more tools in your belt to avoid getting stuck.

• Example 1: Using next-sequent (M-n) and prev-sequent (M-p)

  In subsequent let...in bindings, parent-child/sibling navigation is insufficient and unreliable due to how let...in is represented as deeply nested subtrees in the tree-sitter grammar. Each successive binding is actually a child of the one before it, meaning C-M-p won't walk backwards up the chain. Instead, use sequence navigation to hop directly from one let to the next and back.

  let emit_string_table_section fmt section_name
    (table : Dwarf_write.string_table) =
    let buf = Buffer.create 64 in
    let contents = Buffer.contents buf in
    let i = ref 0 in
    let len = String.length contents in
    while !i < len do
      let start = !i in
      while !i < len && contents.[!i] <> '\x00' do
        incr i
      done;
      let s = String.sub contents start (!i - start) in
      emit_asciz fmt s;
      if !i < len then incr i
    done


  If we want to move from the let-binding on line 3 to the let-binding on line 6, sequence commands M-n and M-p let you jump forward and backward easily.

• Example 2: Using logical-next (M-e) and logical-prev (M-a)

  if (x = 1) then true else false


  When the cursor is on if, you can do C-M-d to go to the parenthesis (, then C-M-d again to enter x, or C-M-n to go to then and else.

  However, if we have the same code without the parenthesis:

  if x = 1 then true else false


  There is no direct sibling relationship to go from x to then using C-M-d or C-M-n. In this case, we use logical-next (M-e) to cross the operator boundary and jump directly to the then branch.

  Logical next/prev allows you to move to the next node in the tree irrespective of their parent/sibling relationships. It is also incredibly helpful for passing over ->, =, and other operators.

• Example 3: Escaping Deep Subtrees

  If you are at the end of a long top-level item and want to navigate to the beginning of the next top-level item, use logical-next (M-e). If you try to use forward sibling navigation (C-M-n) from the end of the item, the cursor won't move at all since you are deep inside a nested subtree with no siblings to your right. Using M-e lets you jump out of the subtree instantly to the next top-level construct.

Editing Commands

Because Combobulate's editing commands are built on top of its navigation primitives, particularly sibling navigation, they all work in OCaml without any extra configuration. If you can navigate between two nodes, you can edit them.

Editing Examples

• Expanding the region (M-h)

  Each press grows the selection to the next syntactic unit. Starting on r inside a function call:

  let area = pi *. r *. r


  • M-h once → selects r.
  • M-h again → selects pi *. r *. r.
  • M-h again → selects the whole let binding.

  M-h displays numbers indicating where the next enclosing region starts, helping you visualize where the cursor will move if you perform a hierarchy-up navigation.

• Expanding an envelope (C-c o e)

  Envelopes are context-aware templates. Press C-c o e then C-h to see what's available.

  For example, to add a module template:

  • Place your cursor where you want to add the template.

  • Press C-c o e to list all available templates.

  • Press M to activate the modules template.

  • The template will be added with name as an editable hole:

    module name = struct

    end


  • Press TAB to jump between holes.

• Adding multiple cursors (C-c o t)

  Cursors land on every sibling at the current level. This is perfect for bulk-editing collections. Place the cursor on any element of an array:

  let primes = [| 2; 3; 5; 7; 11 |]


  Press C-c o t t and a cursor is placed on each element. Anything you type happens to all five at once!

• Swapping siblings — drag forward / backward (M-N / M-P)

  Drag transposes the node at the cursor with its neighbor, preserving formatting. Useful for reordering elements or record fields:

  let primes = [| 2; 3; 5; 7; 11 |]


  With the cursor on 2, press M-N (or M-S-N) to swap them:

  let primes = [| 3; 2; 5; 7; 11 |]


• Cloning a node (C-c o c)

  Duplicates the node at the cursor. On a record field:

  type user = {
    name : string;
    age  : int;
  }


  Place the cursor on name : string and press C-c o c to duplicate it seamlessly.

Inspection & Search

Query Builder Example

Open a live tree-sitter query builder with C-c o B q. If you have value_definitions in your file, you can underline all of them with a blue line using the query:

(value_definition) @hl.blue.underline

Setup

Since Combobulate is built on tree-sitter you will need Emacs 29 or later, as that's when built-in tree-sitter support landed. Install Combobulate from the master branch and add the OCaml grammars to your config file.

To get started with OCaml, add the OCaml grammars to your config file:

(setq treesit-language-source-alist
      '((ocaml . ("https://github.com/tree-sitter/tree-sitter-ocaml"
                  "v0.24.2" "grammars/ocaml/src"))
        (ocaml_interface ("https://github.com/tree-sitter/tree-sitter-ocaml"
                            "v0.24.2" "grammars/interface/src"))))

Run M-x treesit-install-language-grammar for each.

Combobulate can be used with either neocaml-mode^[1] or tuareg-mode^[2] as your major mode. When it's working you'll see © in the mode line, and C-c o o opens the full command palette.

Try it out

Open up a project you are working on. Place your cursor on a case in a match expression and try to teleport to the next sibling.

You can check out the PR adding OCaml support in the Combobulate repo to explore the implementation process in more detail.

Feedback Welcome

OCaml's syntax is flexible enough that there isn't always one obvious answer to "what should the next sibling be?" or "what counts as descending one level?". We had to make judgment calls on a number of corner cases, like what sibling navigation does inside a type ... and ... block, how hierarchy behaves around functors, where sibling navigation should land in deeply nested expressions. We're happy with the choices we made, but we know they won't match everyone's expectations perfectly. If something feels off in your workflow, or you think a particular movement should behave differently, we'd like to hear about it. Open an issue on the Combobulate repo, make a post on Discuss, or contact us to let us know.
